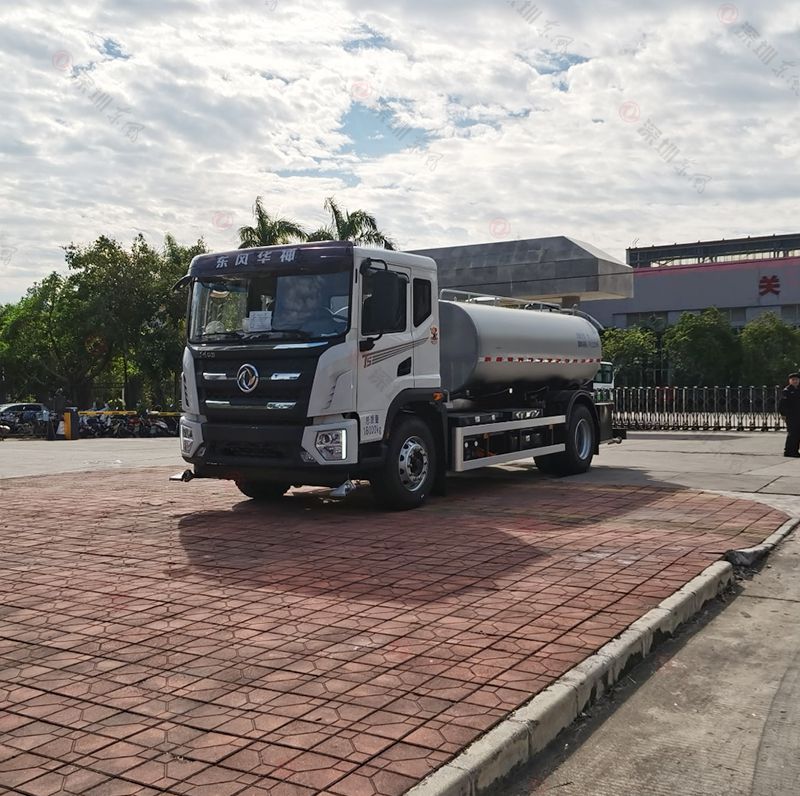

The pure electric sprinkler is a highly efficient sanitation vehicle designed for road watering and cleaning. It features multiple operation modes, including road surface washing, duckbill watering, dust suppression spraying, and greening irrigation. The vehicle uses a large-flow, low-pressure water pump to clean road surfaces, water hedges, and irrigate green spaces, making it ideal for urban road cleaning and green belt irrigation.
The Pure Electric 10T Water Spraying Truck is a highly efficient sanitation vehicle designed for road watering and cleaning. It features multiple operation modes, including road surface washing, duckbill watering, dust suppression spraying, and greening irrigation. The vehicle uses a large-flow, low-pressure water pump to clean road surfaces, water hedges, and irrigate green spaces, making it ideal for urban road cleaning and green belt irrigation.
The pure electric sprinkler is built on the pure electric truck chassis manufactured by Dongfeng Huashen Automobile Co., Ltd. It is equipped with a clean water tank, low-pressure water pump power system, electrical control system, spraying device, and other specialized components. These enable low-pressure water spraying, hedge watering, dust suppression, and more. The vehicle utilizes Dongfeng's mature chassis technology and parts, while being powered by CATL’s Lithium Iron Phosphate (LFP) batteries, which are the best-selling lithium battery products in China with an excellent reputation among users. These batteries are known for their stable performance in both high and low temperatures, long battery life, high charge cycles, as well as stable charge and discharge processes, with a lower risk of fire hazards.
The 10T Water Spraying Truck is equipped with a low-pressure water system and an electrical control system. Front sprinkler nozzles are installed at the front, while left and right low-pressure hedge sprinklers, rear sprinklers, greening sprayers, a water monitor, and other devices are installed at the rear. It is capable of road surface washing, watering, greening irrigation, water monitor washing, spraying, and dust suppression. The vehicle is primarily used for road cleaning, watering, dust control, and greening irrigation.
This vehicle is suitable for urban road surface cleaning, including washing, watering, dust suppression, and spraying operations for green belts.
Urban road cleaning: suitable for daily cleaning of urban main roads, secondary roads and sidewalks, removing dust and stains on the road through high-pressure washing or low-pressure spraying to keep urban roads clean.
Green belt irrigation: For urban parks, green belts on both sides of the street, square green areas and other areas, the vehicle can be used for regular watering to promote plant growth and maintain the beauty of urban greening.
Dust suppression: In places where dust is easily generated, such as construction sites, demolition sites and unpaved roads, water mist is sprayed to reduce the dust content in the air, improve air quality and reduce environmental pollution.
| Technical Parameter | |||
| Vehicle Model | EQ5180GSSSBEV | ||
| Chassis | Chassis Model | EQ1180TLEVJ1 | |
| Chassis Motor Rating/Peak Power (kW) | 120/200 | ||
| Chassis Power Battery Pack Capacity (kWh) | 210.56 | ||
| Chassis Power Battery Type/Manufacturer | Lithium iron phosphate/ CATL | ||
| Wheelbase (mm) | 4500 | ||
| Performance of Operation | Low Pressure Water Spraying | Model | 65QZB50-110 (Shandong Weijia/Hangzhou Weilong) |
| Watering Width (m) | ≥ 12 | ||
| Hedge Width (m) | ≥ 24 | ||
| Rear Water Cannon Range (m) | ≥ 35 | ||
| Rated Power of Drive Motor (kW) | 40 | ||
| Full Power Single Operation Time (h) | 5~7 | ||
| Charging Mode | DC Fast Charge (support dual fast charge) | ||
| Charging Duration (h) | ≤2.5，≤1.5（Double-gun fast charging, supported by electric pile) | ||
| Total Volume of Water Tank (m3) | 9.5 | ||
| Driving Performance | Maximum Speed (full load) km/h | 89 | |
| Maximum Climbing Gradient | 20% | ||
| Quality Parameters | Complete Vehicle Curb Weight (kg) | 8700 | |
| Maximum Total Mass (kg) | 18000 | ||
| Rated Load Mass (kg) | 9105 | ||
| Structure Size | Overall Dimension (L × W × H) (mm) | 8020 X 2510 x 2850 | |
| Approach Angle (°) | 15 | ||
| Departure Angle (°) | 10 | ||
Improved energy efficiency: The low-pressure water pump configured in this model is driven by a separate motor, which reduces the power transmission link, improves energy efficiency, and can achieve fast dynamic response, ensuring efficient operation under various operating conditions.
Integrated electronic control: Through CAN bus connection, control signal transmission and safety protection functions are realized. Once a fault occurs, the vehicle will automatically sound an alarm and take safety measures, such as forced shutdown and power-off protection, to ensure the safety of the operator.
Durable tank design: The tank material is Q345 alloy steel, with a light and durable structure. The surface is coated with water-based anti-corrosion paint, which not only ensures safety but also has good environmental performance, extending the service life of the tank.
Large-capacity water storage tank: Meet the needs of long-term continuous operation, the capacity reaches the industry-leading level, reduces the number of mid-way water replenishment, and improves work efficiency.
Diverse functions: Equipped with a variety of devices such as front duckbill sprinklers, rear sprinklers, and rear monitors, it can adapt to different operating needs, whether it is conventional road cleaning or special occasions, it can respond flexibly.
Independent and convenient operating system: not affected by the driving state of the chassis. There is a one-button control panel in the cab, which can easily realize functions such as starting or stopping, and the operation is simple and fast.
High-quality accessories: All special equipment accessories are from well-known domestic and foreign brands to ensure stable and reliable product performance and provide a long service life.
Advanced water pump and control system: It adopts high-flow and high-lift water pumps from well-known domestic brands. The system has a built-in 40-kilowatt water-cooled permanent magnet motor and a touch screen that meets industry standards, with excellent durability and quality.
Reversing camera ensures safety: The reversing camera is connected to the chassis control system, which is convenient for the driver to observe the rear situation when reversing and enhance driving safety.
Convenient water level monitoring: The electronic water level gauge displays the percentage of water level in the tank in real time, and the information is directly presented on the dashboard of the cab, which helps to reasonably arrange the working time and route. There is also a standard water pipe at the rear of the tank for intuitive viewing of the water level.
Efficient and long-lasting operation: A single full filling of water can operate continuously for more than 18 minutes. There is a motor speed adjustment knob in the cab, which can adjust the speed according to the road conditions to extend the working time and improve work efficiency.
Choose our 10-ton water spraying truck to significantly improve the efficiency and quality of urban cleaning work. Contact us now!
