The pure electric cleaning truck is an electric high-efficiency sanitation truck integrating the functions of road sweeping and high-pressure cleaning. It is a special truck product that has been increasingly welcomed by sanitation users in recent years. The truck has various functions such as road sweeping, road washing, road surface cleaning, curb and curb stone facade scrubbing, and spray dust reduction. The application of the truck has been widely used in cities, roads, and factories across the country. Its working principle is to clean the road surface with high-pressure, low-flow water and to use a fan to suck the sewage and garbage back into the truck-mounted garbage can. It is especially suitable for the cleaning of urban squares, road pavements, and curbs.
Shenzhen Dongfeng, leveraging over ten years of design and development experience in cleaning trucks, has developed the EQ5180TXSBEVS pure electric cleaning truck based on the pure electric cargo truck chassis produced by Dongfeng Commercial Vehicle Co., Ltd. The truck uses a permanent magnet synchronous motor controlled by automobile-grade CAN bus technology for the upper power. The operational functions and specifications meet the requirements for cleaning operation, while the continuous operation time and operational efficiency reach the advanced level of similar products in China. The CATL Lithium Iron Phosphate Batteries matched with the truck are the lithium battery products with the largest sales volume and the best user reputation in China. Lithium iron phosphate batteries not only have stable high and low temperature performance and high cycle charge times but also feature stable charge and discharge characteristics and are less likely to catch fire.
Function Overview

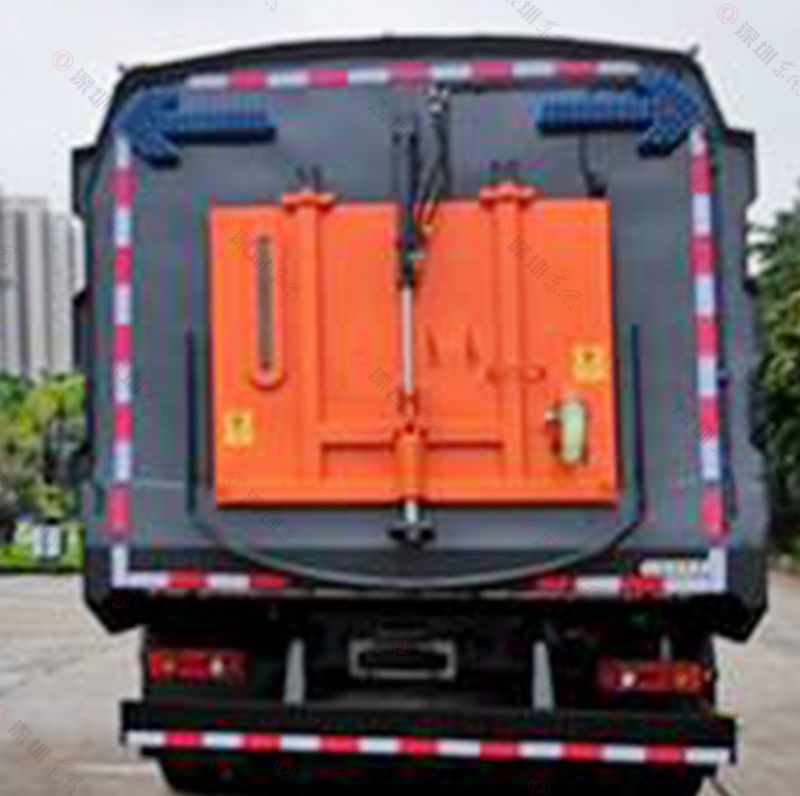

The front part of the truck is equipped with left and right corner sprays. The middle section features a cleaning mechanism, suction nozzle, and high-pressure spray rod. The rear section includes a rear spray device and a handheld spray gun. Additionally, a high-pressure cleaning spray rod is installed inside the tank. The truck offers various functions including road surface cleaning, washing, dry cleaning, left and right corner spray cleaning, rear spray dust reduction, handheld spray gun cleaning, and self-cleaning of the dustbin.
Application Scope
It is mainly used for cleaning, washing, and sweeping urban road pavements, squares, and road edges.
Product Parameters
| Vehicle Model | EQ5180TXSB |
| Chassis Model | Dongfeng EQ1180GEVJ1 |
| Fuel Type and Emission Stage | Pure electric/Zero emission |
| Chassis Drive Motor Model | TZ370XS-LKM1101 |
| Chassis Motor Rating/Peak Power (kW) | 80/160 |
| Transmission Gear Box | Gear 6/automatic transmission |
| Battery Type | Lithium iron phosphate/CATL |
| Chassis Battery Pack Capacity (kWh) | 314 |
| Maximum Speed (km/h) | 89 |
| Upper Motor Rated/Peak power (kW) | 80/160 |
| Wheelbase (mm) | 5300 |
| Overall Length × Width × Height (mm) | 9050 x 2520 x 3200 |
| Total Mass (kg) | 18000 |
| Curb Mass (kg) | 13890 |
| Rated Load Mass (kg) | 4115，3915 |
| Number of Leaf Springs (Front/Rear) | 8/10+8 |
| Front Suspension/Rear Suspension (mm) | 1430/2320 |
| Tire Specification | 295/80R22.5 18PR |
| Charging Mode | DC charging |
| Charging Time | ≤3h |
| Cleaning Width (m) | ≥ 3.5 |
| Operating Speed (km/h) | 3~20 |
| Maximum Suction Particle size (mm) | ≥ 90 |
| Volume of Clean Water Tank (m3) | ≥ 7.8 |
| Rubbish Bin Volume (m3) | ≥ 7.5 |
| Continuous Operation Time of Single Charge (h) | 6~8 |
| Maximum Cleaning Capacity (m2/h) | ≥ 70000 |
| Operating Noise (dB (A)) | ≤ 80 |
| Cleaning Efficiency | ≥ 95% |
| Driving Control System | 7 Inch button+touch control system |
| Tail Control System | Silicone waterproof panel+remote control system |
| Vehicle Video System | 360° around view |
| Air Blowing Pipe in Winter | Standard configuration |
| Water Level Observation | Electronic water level display in cab+box water level indicator |
Product Advantages
5.1 Multiple Functions
The truck supports various operations, including washing, sweeping, spraying, and hand-held cleaning. It handles tasks such as road surface washing, curb cleaning, dust reduction, and corner cleaning, efficiently collecting sewage and garbage while performing multiple functions at once.
5.2 Superior Performance
1. The tank is made of 4mm thick 304 stainless steel, which is durable and corrosion-resistant.
2. The central layout of sweepers, sprinklers, and suction nozzles ensures high cleaning efficiency.
3. The water tank holds 7.8m³, and the trash bin has a 7.5m³ capacity, allowing for 70 minutes of continuous operation.
4. A high-pressure pneumatic blowback system prevents freezing in winter.
5. The sweeping plates and spray brackets feature automatic obstacle avoidance.
6. The suction nozzle’s floating design extends the life of the rubber roller.
7. Sewage valves separate sewage and sludge for easy drainage and longer operation time.
5.3 Quality Components
The truck uses high-quality international and domestic brand parts. The chassis is from Dongfeng, the high-pressure water pump is imported, and key components like the hydraulic valve and air valve are reliable, ensuring stable performance.
5.4 360-Degree Panoramic View System
Equipped with four HD cameras, the system provides a full view around the truck, eliminating blind spots during parking and movement. It also displays real-time road conditions during turns and assists with safe reversing, while monitoring the cleaning mechanism’s performance.
5.5 Intelligent CAN Bus Control System
1. A 7-inch screen and button controls in the cab allow one-button operation, with a rear operation box for easy maintenance. Wireless remote control is available for unloading and self-cleaning.
2. The operation pause function stops and resumes tasks as needed.
3. Fan speed can be adjusted in three levels based on road conditions to save energy.
4. The screen shows real-time water levels and other operation data, making route planning easier.
5. The system provides full status information, including fault alarms and voice prompts.
5.6 Enhanced Safety
1. Multiple sensors monitor liquid levels and the auxiliary generator in real-time. The control panel displays warnings and alerts.
2. A low-water alarm and automatic pump stop protect the water system.
3. Cameras and a display in the cab allow real-time monitoring to prevent collisions.
4. Sound and visual alarms are provided for various operations, such as door opening, reversing, and tank status.
5. Safety interlocks ensure the secure operation of doors, trunk lifts, and braces.
5.7 Energy Efficiency
1. The fan and water pump are driven by a high-efficiency motor, achieving over 94% motor efficiency, providing stable power.
2. The hydraulic oil pump operates independently, making the system more energy-efficient.
