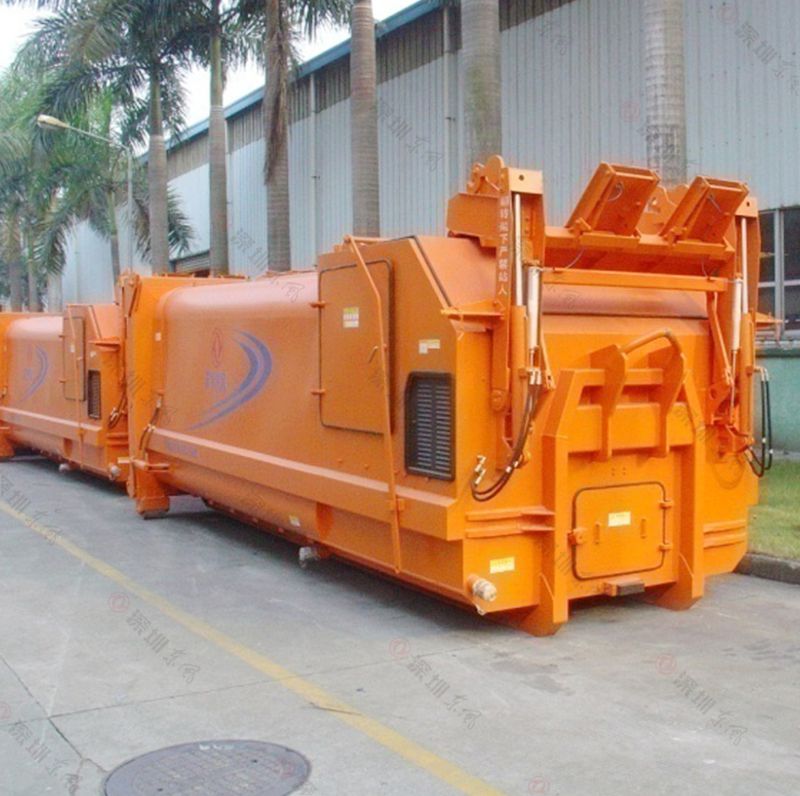

The mobile integrated waste compression container is a sanitation device that combines garbage collection, compression, and storage. It is primarily composed of a flipping mechanism, compression system, garbage container, hydraulic system, and electrical system.
The mobile integrated waste compression container is a sanitation device that combines garbage collection, compression, and storage. It is primarily composed of a flipping mechanism, compression system, garbage container, hydraulic system, and electrical system. This product is suitable for collecting household waste in urban streets, parks, factories, commercial squares, and residential communities. It can be paired with a detachable garbage truck for sealed transportation, offering significant social and economic benefits.
Functional Overview
Garbage is loaded into the container through the feeding port via the flipping mechanism. A compression head presses the waste into the container for compaction. The system offers multiple functions, including garbage collection, compression, transportation, and unloading.
Application Scope
Depending on user needs, either a flip frame or flip bucket can be selected. The flip frame is compatible with standard 120L, 240L, 660L, and 1100L plastic garbage bins as well as a 1.2m² iron bucket, making it suitable for collecting and transporting various types of household waste.
Technical Parameters
| Model | SE12LY-B2A | SE12LY-B3A | SE12LY-D2A | SE12LY-D3A |
| Compression Force (T) | ≥34 | ≥34 | ||
| Dimensions (L×W×H) (mm) | 5000×2470×2670 | 5000×2500×2650 | ||
| Empty Box Weight (kg) | ＜4800 | ＜5300 | ||
| Feed Opening Size (mm) | 1275×1710 | 1540×2050 | ||
| Hook Height (mm) | 1570 (International Standard; compatible with detachable garbage trucks) | |||
| Guide Rail Width (mm) | 1060 (International Standard; compatible with detachable garbage trucks) | |||
| Guide Rail Material | 16# I-beam | 18# I-beam | ||
| Feed Opening Height from Ground (mm) | 1800 | 1700 | ||
| Power Supply Voltage (V) | 380V, Three-phase & Five-wire | |||
| Motor Power (kW) | 5.5 | 7.5 | ||
| Compression Cycle Time (S) | ≤50 | ≤43 | ||
| Total Volume (m³) | 12 | |||
| Compression Chamber Volume (m³) | 3 | |||
| Rear Door Lock & Opening Mechanism | Electrically Controlled Hydraulic + Self-dumping Hydraulic Cylinder | |||
| Flip Frame Lifting Capacity (kg) | 450 | 1000 | ||
| Flip Frame (Bucket) Cycle Time (S) | 24±2 | 30±2 | ||
| Box Roller Outer Width (mm) | 2224 | |||
| Compression Head Dimensions (mm) | 1780×480 | |||
| Hydraulic System Pressure (MPa) | 21.5 | 21.5 | ||
| Waste Compression Density (T/m³) | 0.65-0.9 | |||
| Flip Frame Type | 120L-1100L Standard Plastic Bins & Manual Cart Flip Frame | 4m³ Large Flip Bucket | ||
| Optional Flip Bucket Volume (m³) | 1.2 (optional) | 4 | ||
| Product Features | The compression chamber and pusher are made from wear-resistant steel plates. | |||
| Key components | PLC controller, pump, and motor are sourced from well-known domestic brands. | |||
| Optional Configurations | 1. Hydraulic quick-change joint + hydraulic cylinder locking, self-dumping opening.2. Electrically controlled hydraulic + hydraulic cylinder locking, self-dumping opening.3. Manual ratchet locking + self-dumping opening. | |||
| Site Requirements | Two-machine station area, no less than 9×9 meters. | |||
| Hook-arm vehicle area | no less than 18 meters in front of the station | |||
| Construction requirements | 1. Cement foundation with C25 strength or above, no less than 300mm thick2. Station surface can be terrazzo or epoxy resin3. Building height and rolling shutter clearance must exceed 5 meters. | |||
Product Advantages
Compression Chamber and Box
The compression chamber and push head are crafted from high-strength, wear-resistant, and corrosion-resistant steel with a hardness of ≥400HB and yield strength of ≥1000MPa. The M-shaped compression head delivers powerful garbage shredding capabilities, ensuring smooth and stable compression operations. The box is designed with a tapered opening for effortless unloading, while pressure stabilization in the front and rear chambers prevents localized overpressure.
Superior Sealing to Prevent Secondary Pollution
The rear door of the compression box features a six-point locking mechanism and utilizes an "Ω" double-wing, double-lip special sealing strip. This design enhances sealing performance, preventing sewage leakage and allowing for easy maintenance and replacement.

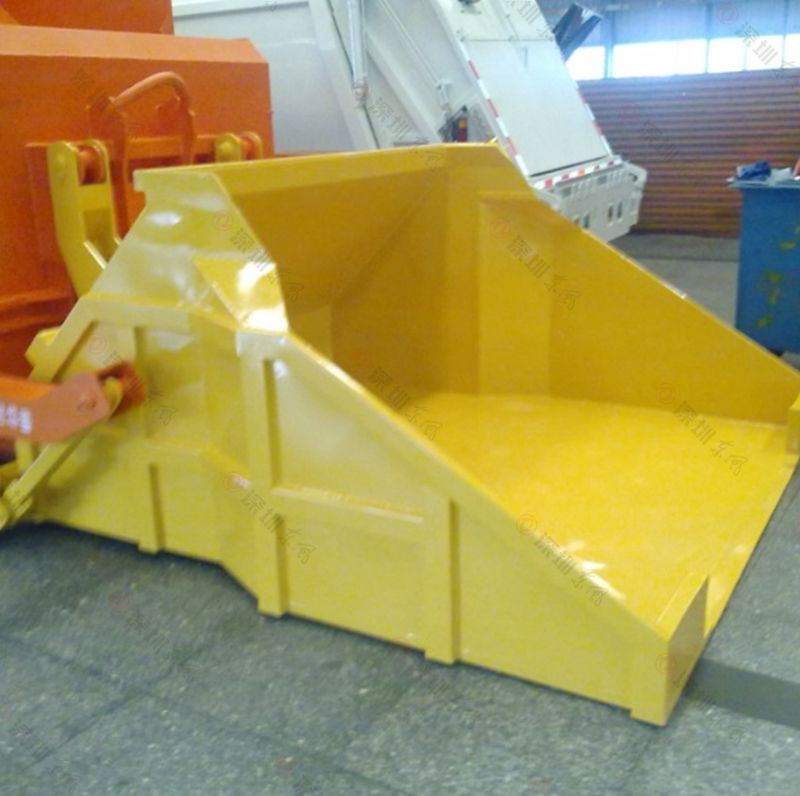

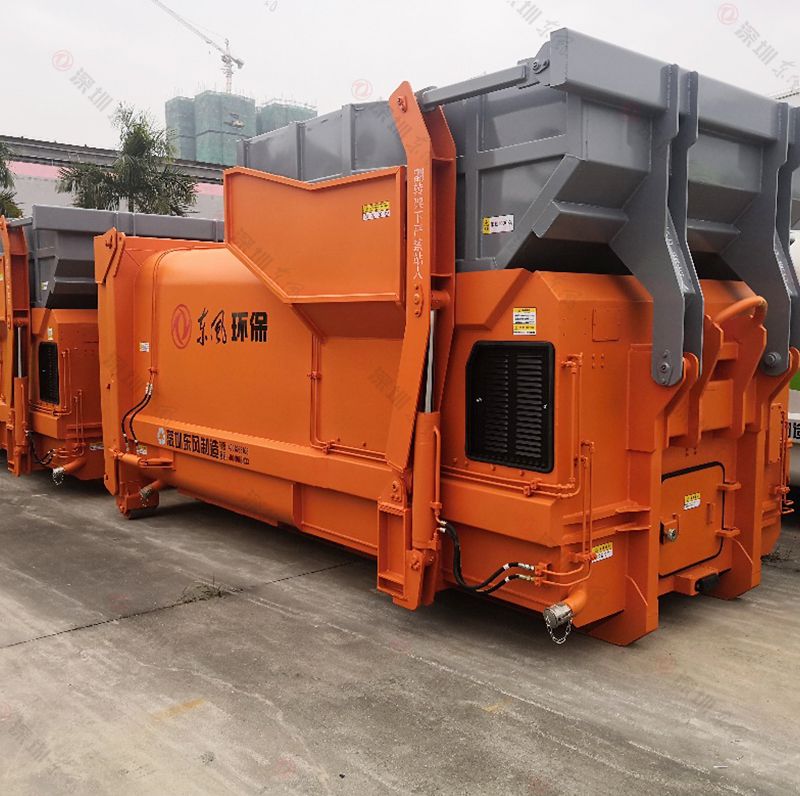

Large Capacity Flip Bucket
Equipped with a 4m³ flip bucket, this mobile waste compression container offers 1m³ more capacity than standard industry models. It is highly compatible with various garbage collection vehicles, optimizing waste handling efficiency.
Flexible Flip Frame
Designed to accommodate standard international 120L-1100L dual-wheel and four-wheel plastic lidded bins, the flexible flip frame can also work with custom-designed flip buckets for manual cart unloading.
Advanced Control System

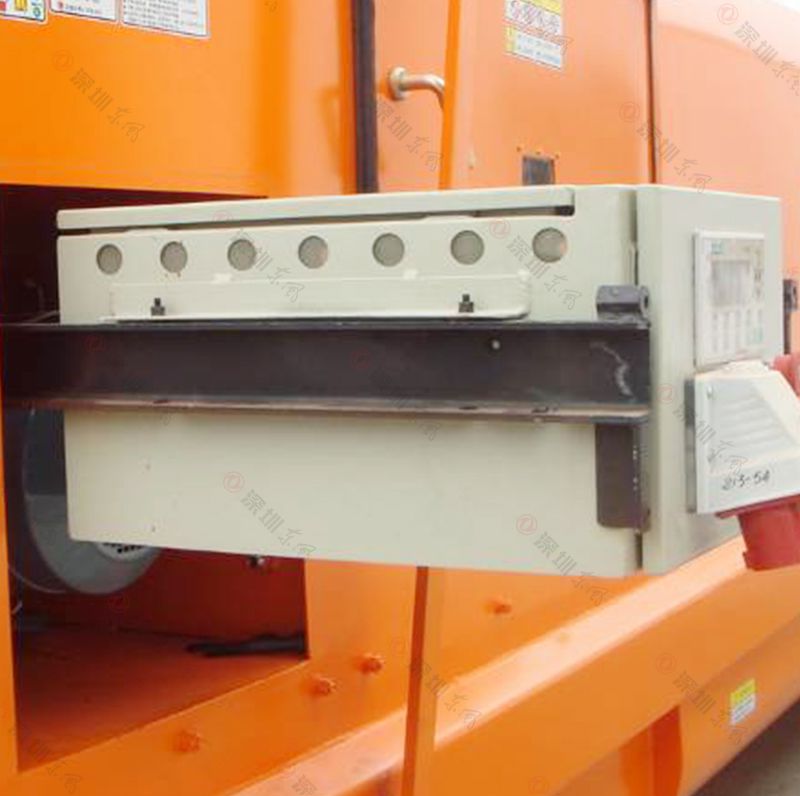

The power system is designed for easy maintenance with a pull-out configuration and air ducts at both ends. The hydraulic pump uses a single-pump system with an optional dual-pump upgrade for increased efficiency. The hydraulic system includes a cooling device, and all key components such as the hydraulic pump and valve set are sourced from reputable international brands. The oil pipes for the compression head cylinder are acid and alkali-resistant.
The electrical system features globally recognized smart control modules, a visible LCD operation panel, fault display and alarms, automatic display of operational parameters, and a load-adaptive function for optimized energy efficiency. The system also includes load indicators (1/4, 1/2, 3/4) and a full-load warning. Emergency stop and forced retraction functions are also available for added safety.
Smooth Hook and Box Operation
The guide rails, made from national-standard I-beams, ensure strong resistance to deformation and wear. The smooth underside design enables the container to glide easily during loading and unloading via hook-arm vehicle rollers.
Strong Guide Rail Structure
Constructed from WISCO 18# SS400 I-beams, the box guide rail complies with national standards. Its one-piece, non-welded structure provides superior resistance to deformation, durability, and long-term reliability. The 1060mm width also meets international standards for compatibility.
Comprehensive Safety Features
A unique triple lightning protection system includes an automatic voltage regulator, grounding device, and an industry-exclusive ground lightning protection mechanism. These features ensure operator safety, particularly in storm-prone areas, effectively addressing lightning risks.
