The first domestic rear-mounted compressed garbage truck was successfully developed by Shenzhen Dongfeng Automobile Co., Ltd. in 1987. After more than 30 years of accumulation and refinement, our product series is complete (covering vehicles with a total weight range of 7 to 25 tons), with reliable quality, superior performance, and leading core indicators such as loading capacity, operational efficiency, and sealing technology in China.
The first domestic rear-mounted compressed garbage truck was successfully developed by Shenzhen Dongfeng Automobile Co., Ltd. in 1987. After more than 30 years of accumulation and refinement, our product series is complete (covering vehicles with a total weight range of 7 to 25 tons), with reliable quality, superior performance, and leading core indicators such as loading capacity, operational efficiency, and sealing technology in China.

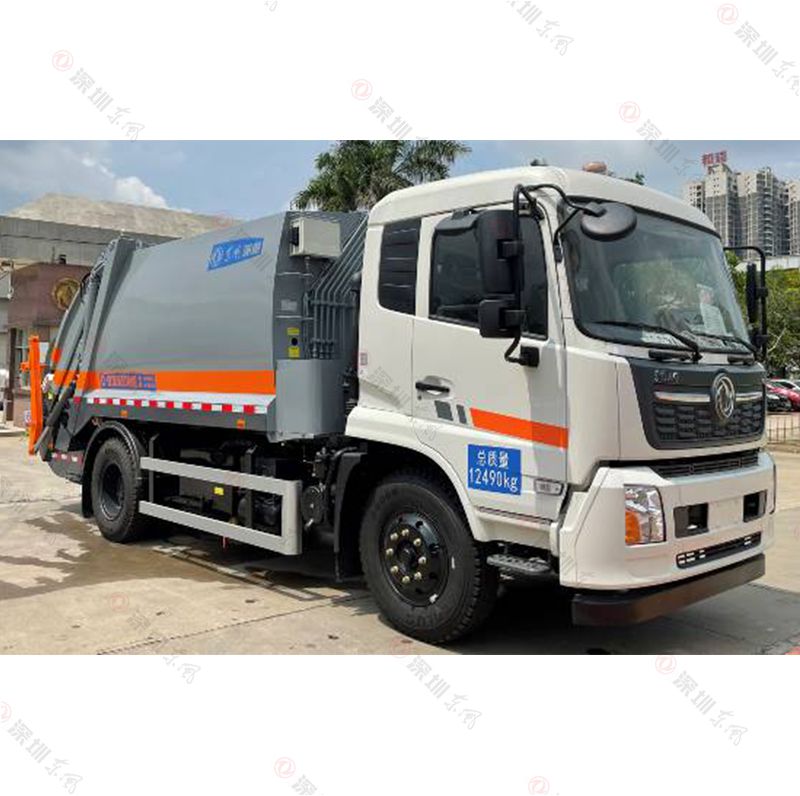

The EQ5125ZYSS6 rear-mounted compressed garbage truck is the latest generation product elaborately developed and launched by Shenzhen Dongfeng based on the actual use needs of users. The truck has a beautiful appearance and innovative design. It is modified from Dongfeng Tianjin Class II chassis with dedicated working devices such as a carriage, push shovel, filler, scraper and slide plate, flipping mechanism, hydraulic system, and electrical system. It is equipped with Cummins engine and its emission meets the national standard Ⅵ.
This product has a wide range of applications and low environmental requirements. It is suitable for rural areas, urban streets, parks, residential communities and other large areas, primarily used for the collection and transportation of household waste.
Functional Overview
Garbage is fed into the filler through a flipping mechanism from the rear of the truck, and then crushed, compressed and pressed into the carriage. The truck features various functions including garbage collection, compression, transportation, and unloading.
Applicable Scope
The rear can be equipped with either a flipping frame or a flipping bucket as needed. The flipping frame can accommodate 120L, 240L, and 660L standard plastic garbage cans as well as 300L metal garbage cans, making it suitable for the collection and transportation of various household waste.
Technical Parameters
| Vehicle Model | EQ5125ZYSS6 |
| Chassis Model | DFH1120B4 |
| Engine Model | Dongfeng Cummins D4.0NS6B185 |
| Fuel and Emission Standard | Diesel, National VI |
| Rated Power (kw) | 136 |
| Maximum Speed (km/h) | 89 |
| Overall Length × Width × Height (mm) | 7900（basic type), 8140 (flipping bucket), 8295 (flipping frame) × 2460 × 3030 |
| Total Mass (kg) | 12490 |
| Curb Mass (kg) | 8750（basic type), 9150 (sealing cover and flipping frame), 9350 (flipping bucket) |
| Announced Load Mass (kg) | Basic type: 3610，3545; Sealing cover and flipping frame: 3210，3145; flipping bucket: 3010，2945 (allowable number of passengers in the cab: 2, 3) |
| Wheel Base (mm) | 3950 |
| Number of Leaf Springs | 10/8+8 |
| Tyre | 9.00R20 |
| Approach/Departure (°) | 14/14 |
| Front Suspension/Rear Suspension | 1430/2520（Basic type) |
| Car Volume (m3) | 12（Effective Volume: 10) |
| Packer Volume (m3) | 1.6 |
| Total Volume of Sewage Tank (L) | 460（Front 250, rear 210) |
| Engine Working Speed (r/min) | 1150 |
| One-cycle Time (S) | ≤ 16 |
| Loader Lifting Time (S) | 8~14 |
| Garbage Discharge Time (S) | ≤ 45 |
| Operating Mode of Control System | Electro-Hydraulic Fully Automatic, Electro-Hydraulic Manual, Electro-Hydraulic Inching, Purely Hydraulic Manual |
| Optional | Flipping frame, Flipping bucket, Rear monitoring system, Working light, etc |
Product Advantages
1. Elegant Design: Features a simple, smooth, and attractive appearance.
2. Advanced and Reliable Control System: Patented technology with imported components ensures stable operation. The system offers four control modes (electro-hydraulic fully automatic, electro-hydraulic manual, electro-hydraulic inching, purely hydraulic manual) that can be switched freely, maintaining functionality even during electrical failures.
3. Industry-Leading Loading Capacity: Large carriage volume with a two-way compression system supports over 6 tons.
4. High Efficiency: Scraping and sliding plates cycle in 16 seconds. The optional dual-pump system allows simultaneous operations for increased efficiency.
5. Superior Sealing and Pollution Control: Patented design includes multiple sewage tanks and custom sealing strips, preventing leaks and secondary pollution.
6. Versatile Rear Loading Mechanism: Handles multiple trash can sizes (120L/240L, 660L, 300L) simultaneously, offering wide adaptability.
7. Low Fuel Consumption: Automatic engine adjustment keeps idle speed at ≤800 rpm and working speed at ≤1150 rpm, reducing fuel use and operating costs.
8. Combination of Size and Speed: Merges European-style high compression with Japanese efficiency, delivering fast and effective performance.
9. Enhanced Safety: The hydraulic lock and mechanical safety brace ensure secure operation and double protection.
10. Programmable Control Technology: Allows precise, complete garbage discharge and in-cabin operation, leading in domestic technology.
11. Clean and Durable Design: Flat carriage floor with side rails ensures no leftover waste. Key components are made from high-strength steel for longevity.
12. User-Friendly Operation: The rear sealing cover is air-cylinder controlled, reducing labor intensity.
